Heavy-Duty Security for Cabinets, Toolboxes & Compartments

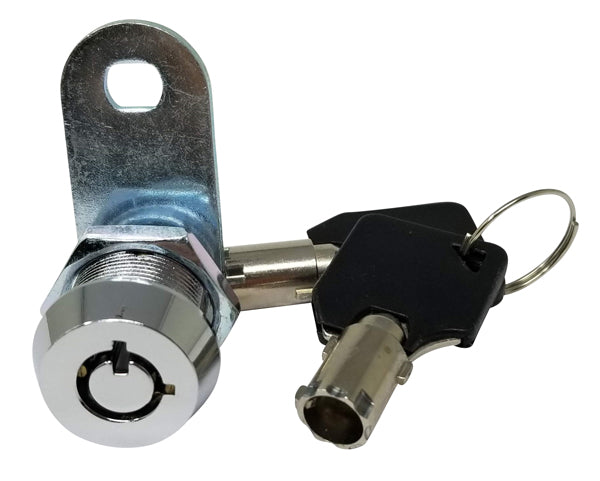

Engineered for commercial-grade security, our 5/8" Non-Retaining Tubular Cam Locks deliver smooth operation and reliable protection. Built with precision components, these tubular locks are designed for heavy daily use across industrial, commercial, and personal equipment.

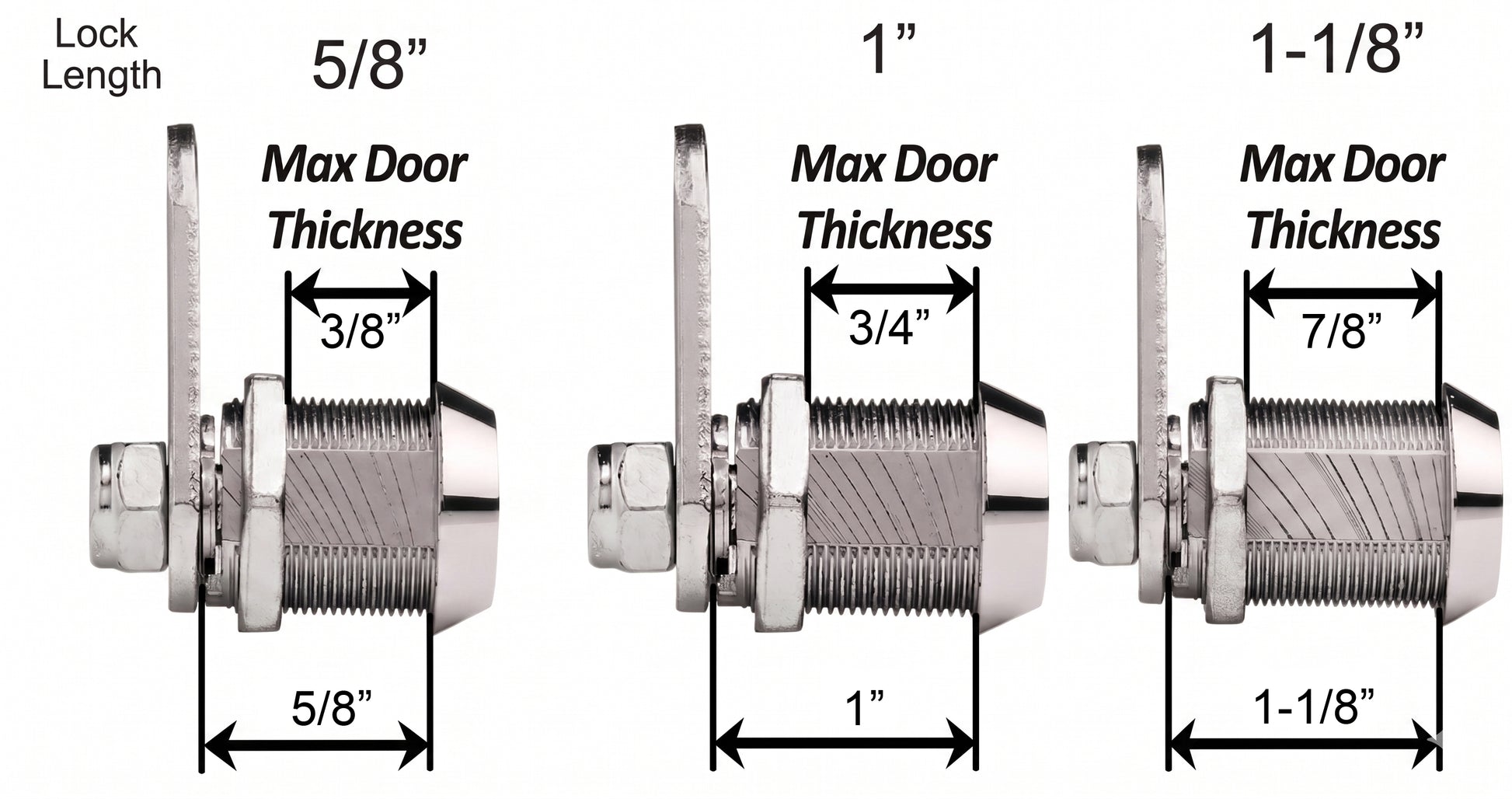

How to Pick the Right Lock Size
Measure the thickness of your door or cabinet panel before ordering:
📍 THIS LISTING: 5/8" Cylinder Length
Fits door/material thickness UP TO 3/8" (9.5 mm) ONLY.

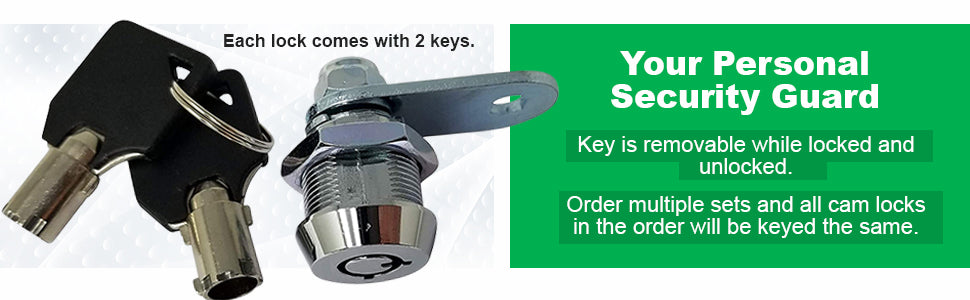

Removable Key Design (Non-Retaining): Key can be removed in both locked and unlocked positions—preventing keys from snagging or breaking off in open cabinet doors or storage compartments.
4-Way Flexible Installation: Mounts in multiple orientations with 90° clockwise or counter-clockwise rotation options.
Keyed Alike Convenience: Simplify key management by using a single key code across your entire fleet of equipment, toolboxes, or storage locks.

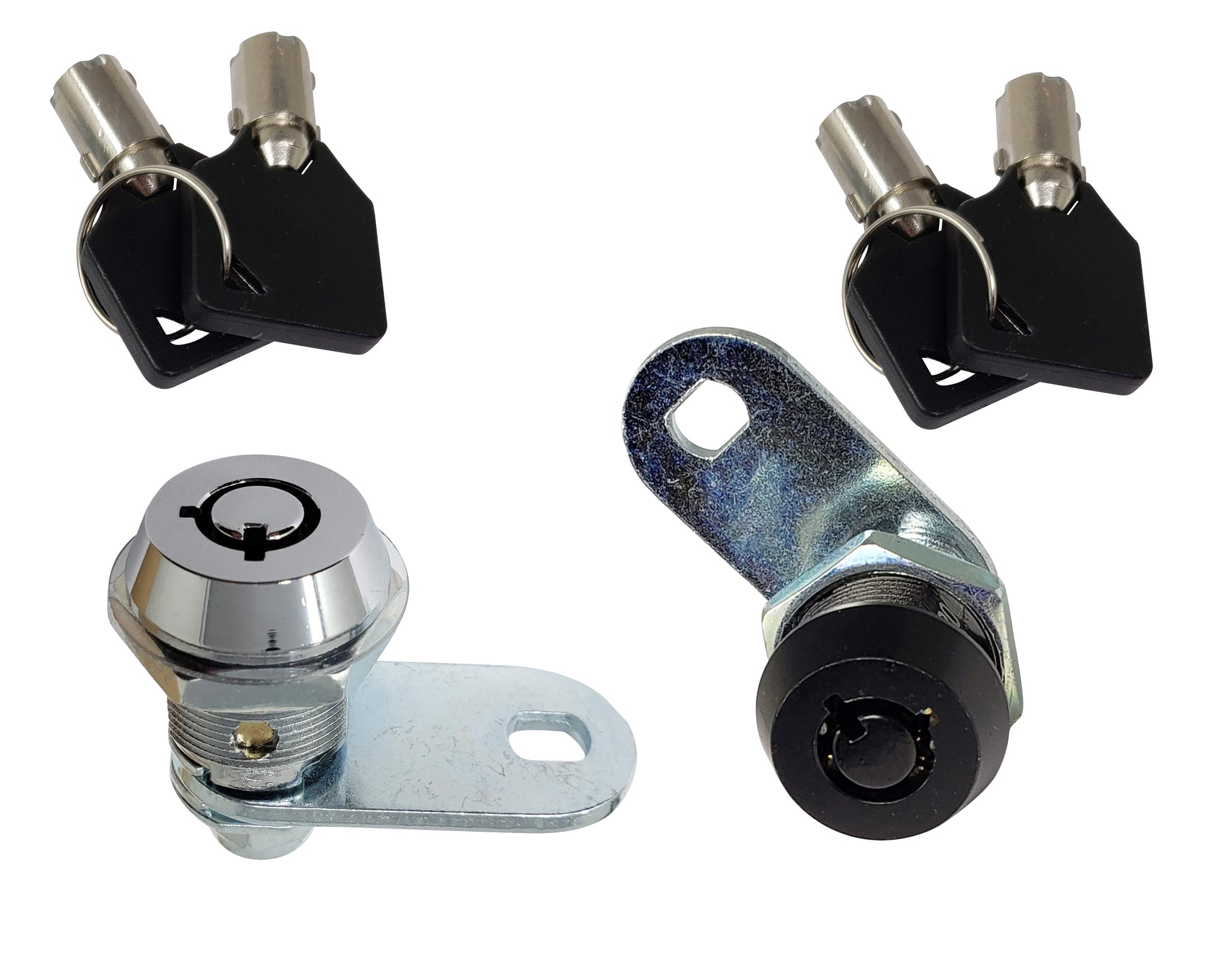

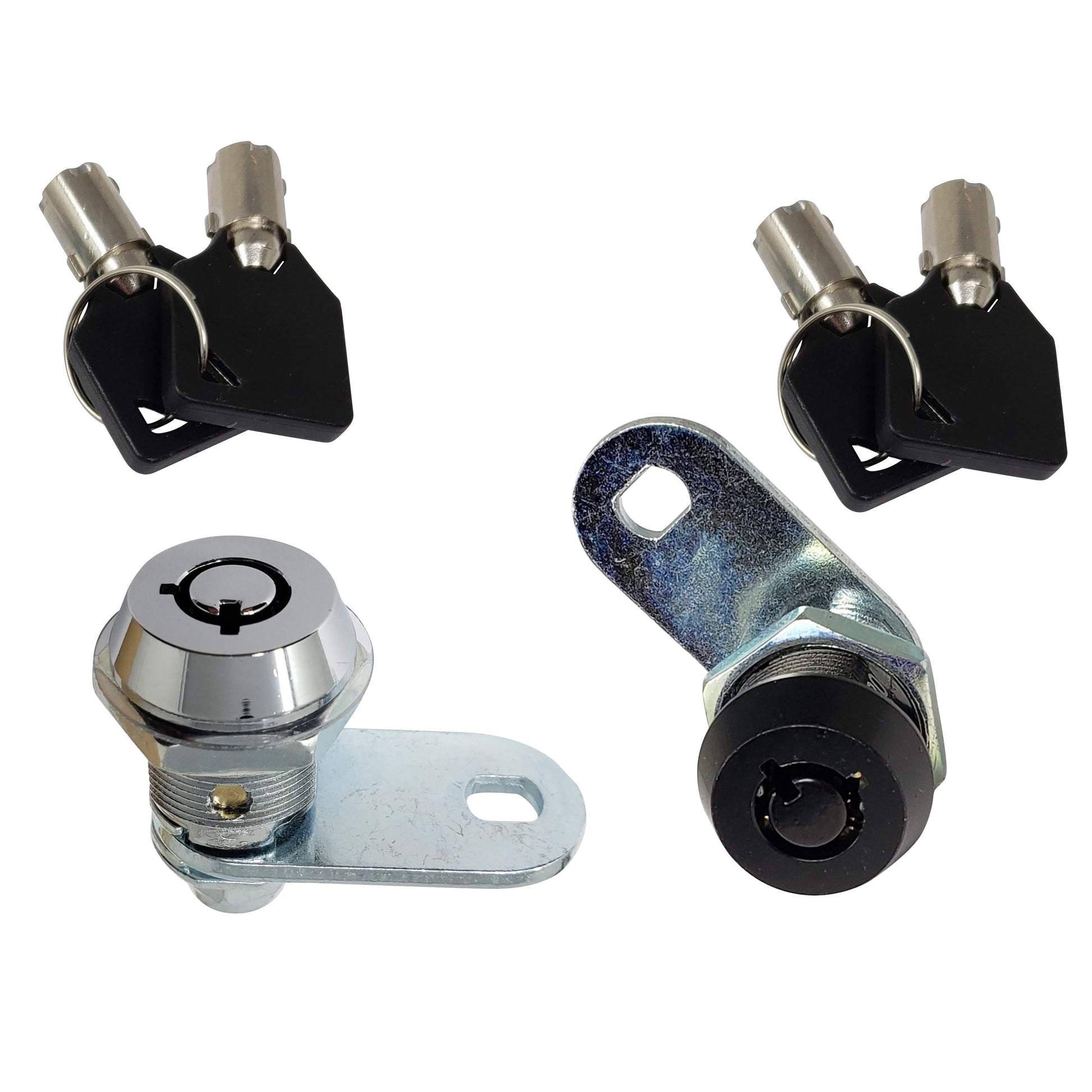

Corrosion-Resistant Build: High-strength zinc alloy housing with your choice of sleek Black or classic Chrome finish to resist wear and weather.

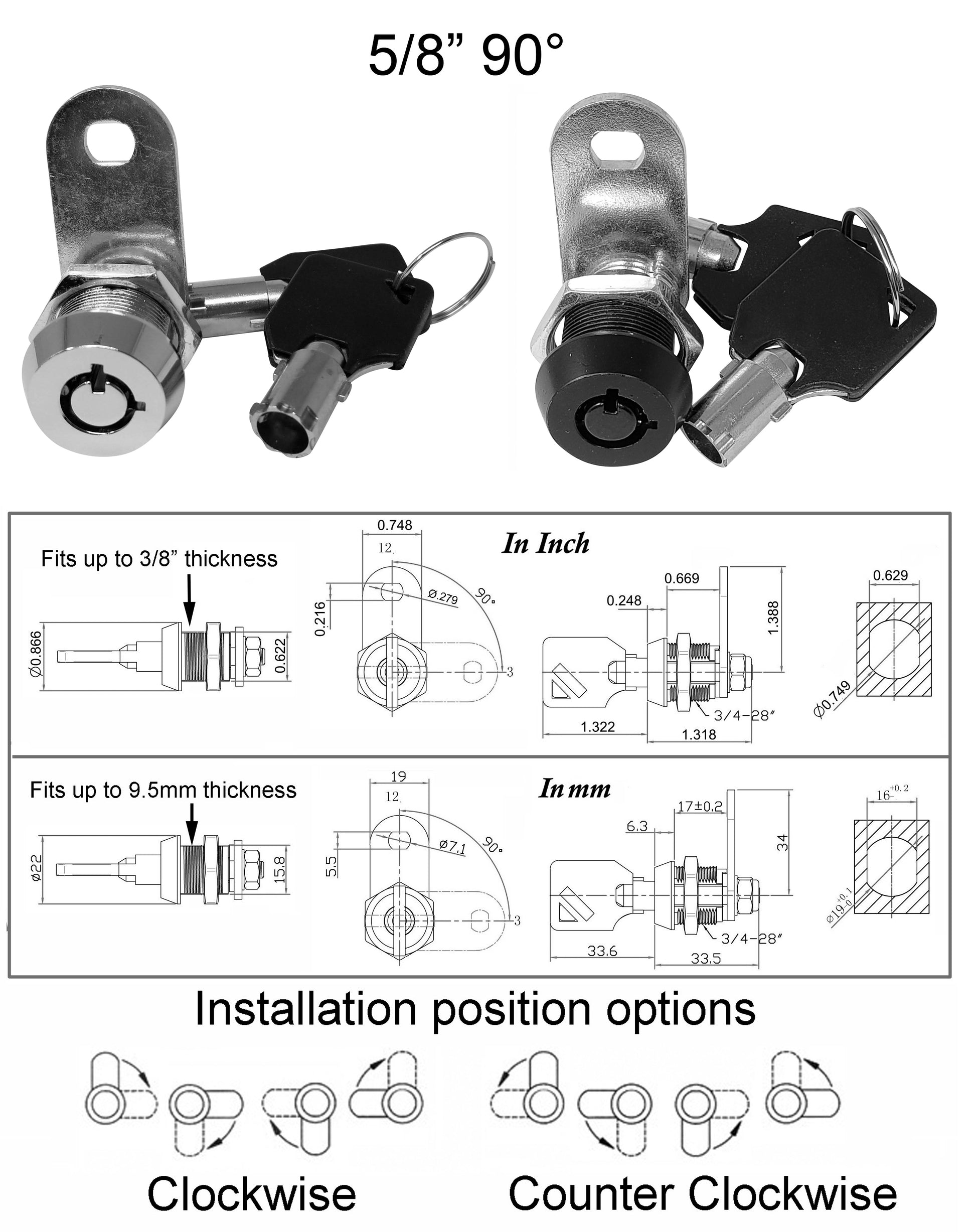

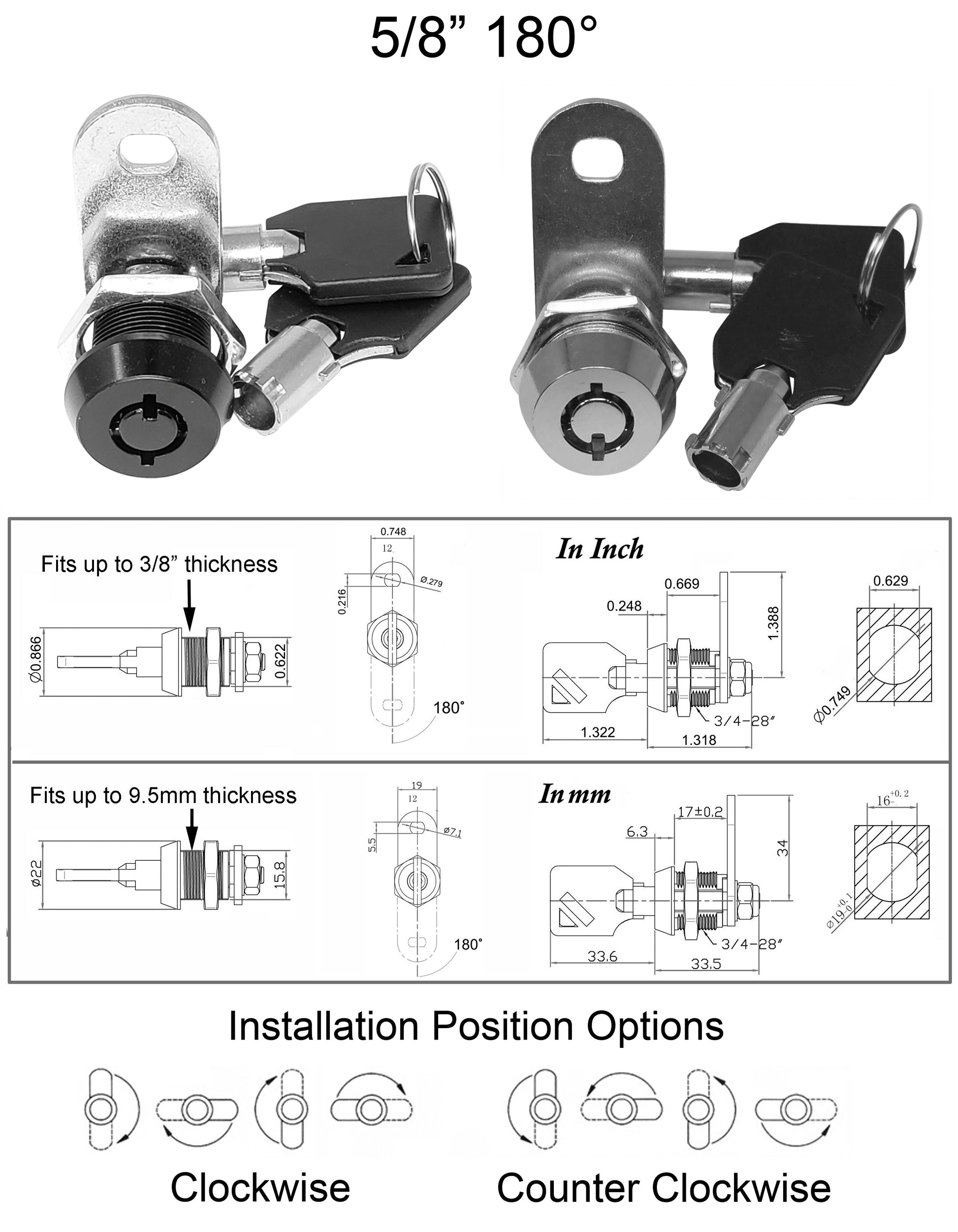

Specifications & Mounting Dimensions
Feature / Dimension
Specification
Cylinder Length
5/8" (17 mm)
Max Door Thickness
Up to 3/8" (9.5 mm)
Mounting Hole Cutout
Standard 3/4" Double-D Flat (Ø0.749" / 19 mm)
Thread Pitch
3/4"-28 UNS
Keying
Keyed Alike
Key Removal
Removable in Locked & Unlocked Positions

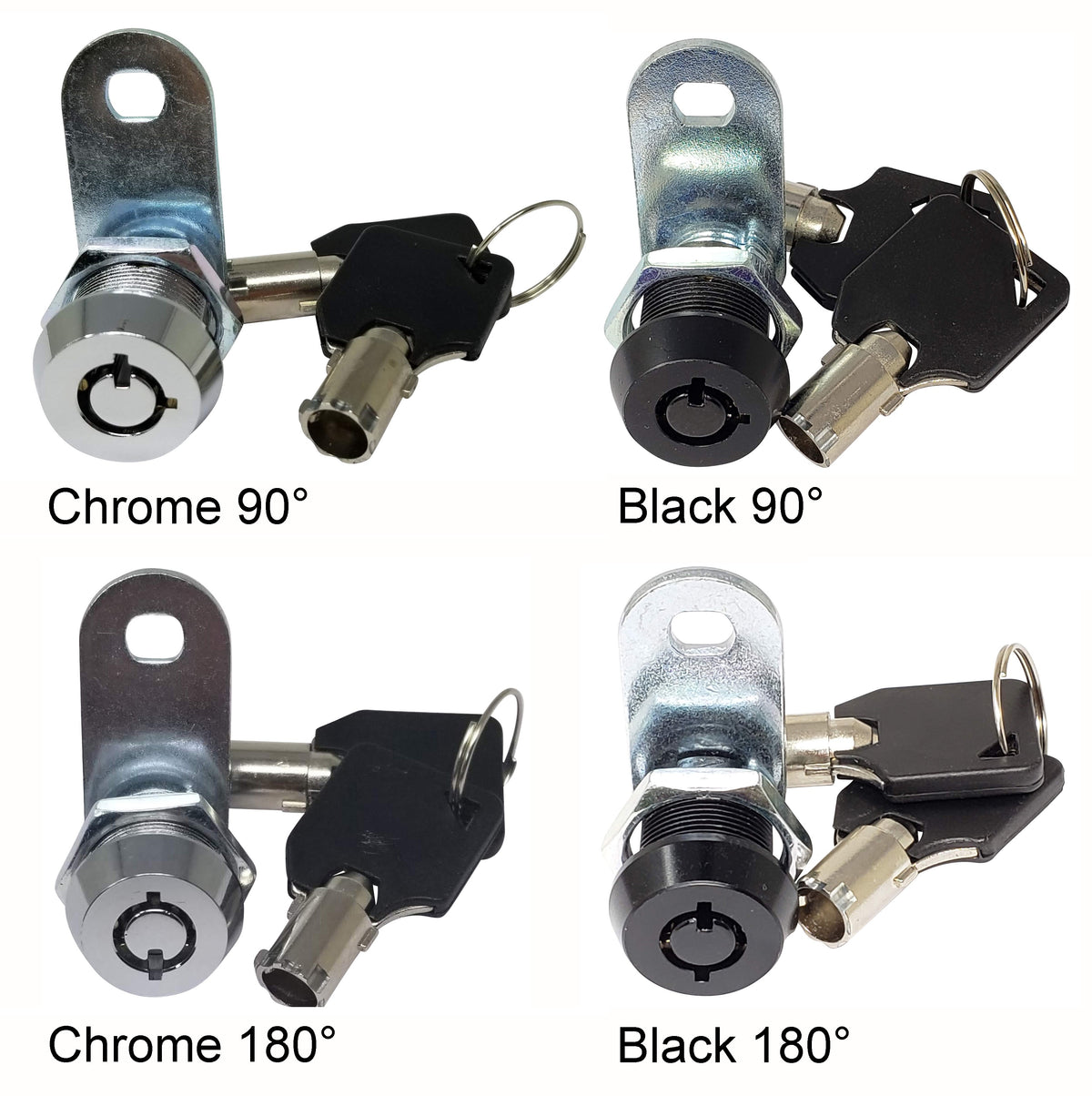

Finish Options
Chrome / Black
Rotation Angles
90° (Clockwise or Counter-Clockwise)
Recommended Applications
Toolboxes, service truck chests, and storage boxes
RV exterior compartment doors and storage locks
Cabinet doors, desk drawers, and office storage
Electrical, telecom, and machinery equipment enclosures
